Datrend Systems

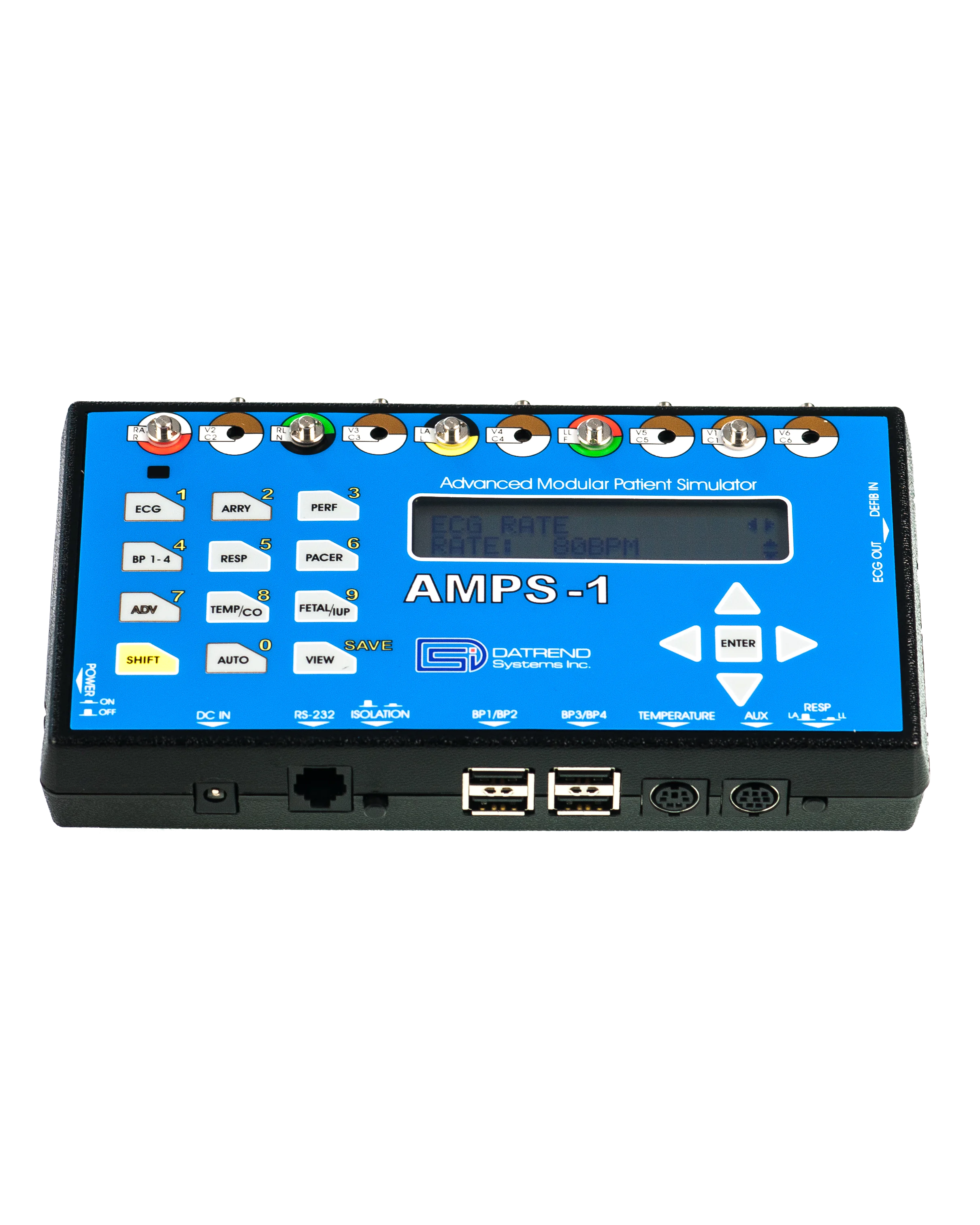

AMPS-1
Advanced Modular Patient Simulator
- Full 12-lead ECG simulation with multiple outputs
- Wide selection of arrhythmias
- Temperature and respiration simulations
- Optional Mechanical Fetal Heart and Cardiac Output Module
- Portable, battery-operated
Schedule a Demo
Datrend Systems
AMPS-1
Overview
Don't Let the Size Fool You.
This compact Simulator packs a lot of punch in a small package. Measuring only 7” x 4” x 1.25", AMPS-1 fits comfortably in your hands with all leads and cables conveniently fed from the top and bottom ends. Operate from the single 9-volt alkaline battery or with the optional battery eliminator.
The unique modular design of AMPS-1 allows you to get just what you need as you need it. Upgrading and adding modules is easily accomplished by you at your facility. No need to send it to a repair facility just to add features.
Features
The Standard AMPS-1 is Packed With...
- 12 lead ECG simulation with 9 independent outputs for each signal lead
- 16 total ST Segments: 8 elevated and 8 depressed
- Axis Deviation: Normal (intermediate), horizontal, and vertical. (Modifies baseline ECG during arrhythmias)
- Neonatal Mode: ECG R wave width is reduced to 40ms
- ECG Performance Testing
- 52 Arrhythmia selections
- Temperature and Respiration Simulations
- Pacer simulations
- Defibrillator training
- Remote Control via RS-232
As Your Workload and Budget Dictate, Easily Add...
- 2 or 4 Electrically Isolated BP Channels, including Swan-Ganz simulation
- Cardiac output
- Mechanical Fetal Heart
- Fetal, Maternal and IUP simulations
Accessories
Kit
7500-435
Kit, Serial Adapter, ES601 -> P3/Solo, AMPS-1 -> PC (RJ12 -> DB9F) (ES601 to Solo/Phase3)
Cable
7200-562
IBC Cable, Siemens Drager Gamma Infinity 7P
7200-585
Invasive BP Interface, GE/FLUKE
7200-584
GE Cardiac Output Injectate Cable (without GE Cardiac Output)
7200-531
IBP Cable, Fukuda Denshi DS-8XXX
7200-484
IBP Cable, Spacelabs 91496, 10 Pin
7200-523
IBP Adapter Cable, Siemens 10 Pin – 7 Pin
7200-524
IBP Cable – Siemens 10 Pin
7200-530
Temperature Cable, Philips / HP Simulator Cable (AMPS-1)
7200-466
Invasive BP Cable, GE/Marquette, 11 Pin
7200-468
Invasive BP Cable, HP/Invivo/MDE, 6 Pin
7200-469
Invasive BP Cable, HP/Philips, 12 Pin
7200-470
Invasive BP Cable, Marquette, 7 Pin
7200-471
Invasive BP Cable, Nihon Khoden, 5 Pin
7200-477
Invasive BP Cable, Fukuda Denshi, 12 Pin
7200-479
Invasive BP Cable, Criticare nCompass
7200-098
Cable Assy, Unterminated IBP Cable, AMPS-1
7200-239
Cable Assy, Colin A308 6Pin IBP Cable
7200-454
AMPS-1 YSI 400 Temp Cable (6 Pin Mini-Din - 1/4" Mono Phono Plug)
7200-455
AMPS-1 YSI 700 Temp Cable (6 Pin Mini-Din - 1/4" Stereo Phono Plug)
7200-463
Invasive BP Cable, Datascope, 6 Socket
7200-464
Invasive BP Cable, Datex-Ohmeda, 10 Socket
3140-399
Adaptor, USB To Serial DB9M
3140-429
Cable, RJ12(6P6C) – RJ12), Tester Interface, 7’ (ES601 to AMPS-1)
Companion Product
8000-454
Cardiac Output Adapter
8000-455
Mechanical Fetal Heart Adapter
Power Cord
AMPS-1/FMS-3 SPS-AU/CN
AMPS-1/FMS-3 Power Supply, AU/CN
AMPS-1/FMS-3 SPS-UK
AMPS-1/FMS-3 Power Supply, UK
AMPS-1/FMS-3 SPS-EU
AMPS-1/FMS-3 Power Supply, EU
AMPS-1/FMS-3 SPS-NA
AMPS-1/FMS-3 Power Supply, NA
Software
6960-100
AMPS-1, 2 Electrically Isolated BP Channels (AMPS-1 software option)
6960-101
AMPS-1, 4 Electrically Isolated BP Channels (AMPS-1 software option)
6960-102
Cardiac Output (AMPS-1 software option) requires 6960-100 or 6960-101
6960-103
AMPS-1, Fetal, Maternal & IUP (AMPS-1 software option) requires 6960-100 or 6960-101
