Datrend Systems

vPad-IN

The Next Generation Infant Incubator & Radiant Warmer Analyzer

Tests to IEC 60601-2-19, 2-20 and 2-21
Follows both Edition 1 and Edition 2 of Standard
Built on the Vision-Pad platform to give you greater flexibility and scalability
Wireless control of tests within incubator
Changes to test can be made without disturbing heat environment
Measures all parameters automatically following user-defined protocols
Results can be merged with Electrical Safety test results

Product Sheet

Overview
Features
App Info
App Packages
Accessories
Support

Datrend Systems

vPad-IN

Overview

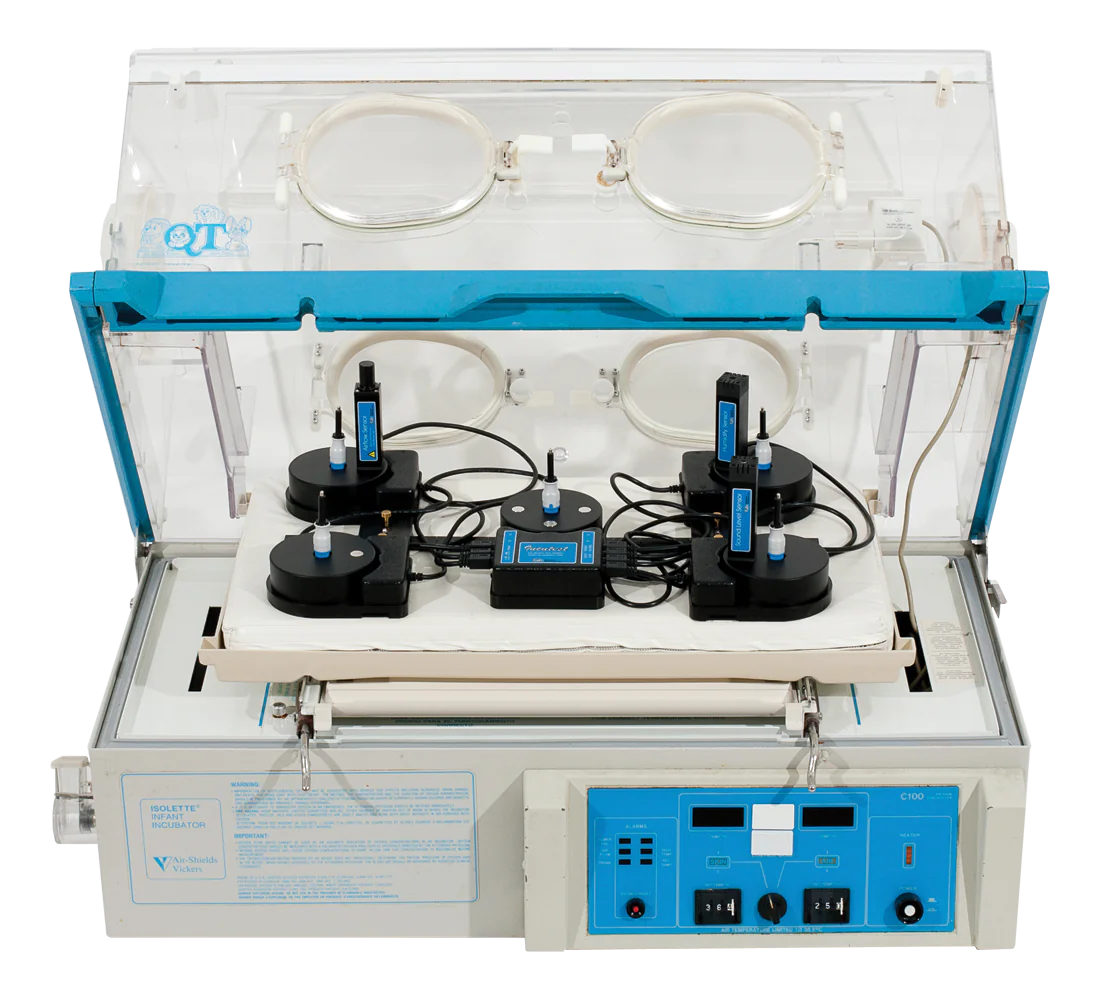

vPad-IN is a next generation infant incubator and radiant warmer testing system that meets the requirements of the IEC Standards for Incubators (IEC 60601-2-19), Transport Incubators (IEC 60601-2-20) and Radiant Warmers (IEC 60601-2-21).

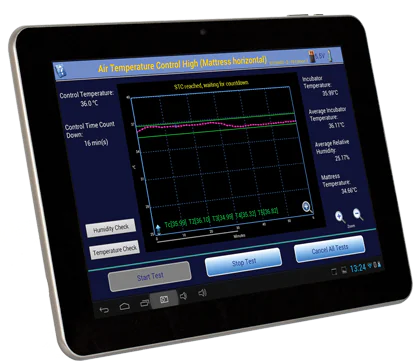

vPad-IN has all the functionality and scalability that you have come to expect from Vision-Pad Technology products. Parameters are sensed inside the incubator environment and results are transmitted wirelessly to a 10.1" Android tablet for analysis and display. Test parameters and test protocols can be modified without disturbing the equilibrium of the heated environment, thereby minimizing test times.

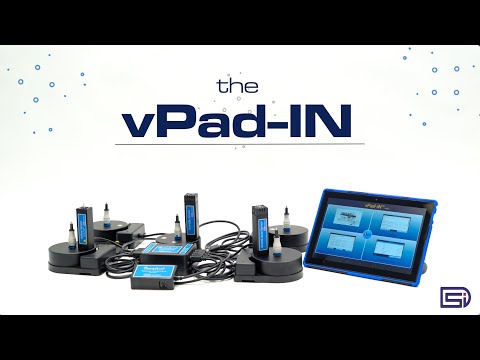

vPad-IN Product Video

Features

Compatible with closed, forced air convection incubators, and open, radiant infant warmers.
Simultaneously measures humidity, airflow, sound, and 6 different temperatures
Tests are carried out in accordance with IEC 60601-2-19, IEC 60601-2-20, and IEC 60601-2-21
All sensors are independently movable, to be placed in positions required by the Standard
Sound level measurements may be taken outside the incubator for external alarm test
Results can be merged with vPad Electrical Safety test results
Optional precision controlled heater can accurately test body temperature sensors

App Info

Standard Applications

Datrend Docs

The vPad Datrend Docs is a technical document library, ideal for storing electronic manuals, procedures and specifications. Datrend Docs comes...

The vPad Datrend Docs is a technical document library, ideal for storing electronic manuals, procedures and specifications. Datrend Docs comes installed with all Operator Manuals for the vPad family.

Record Manager

Record Manager provides direct access to all test reports created by the vPad Apps. Reports can be reviewed on screen....

Record Manager provides direct access to all test reports created by the vPad Apps. Reports can be reviewed on screen. In addition, reports can be converted to PDF documents; printed to a wireless printer; or copied to USB or a Bluetooth device (PC) one at a time, or in user-selected groups. Test records can also be transferred directly to Dropbox^TM, box, Google Drive and OneDrive. File management has never been so easy or complete on a basic manual safety tester.

vPad-INR

vPad-INR enables users to take measurements and capture data using all of vPad-IN sensors without waiting hours (IEC standards) for...

vPad-INR enables users to take measurements and capture data using all of vPad-IN sensors without waiting hours (IEC standards) for steady state temperature readings – ideal for when called into the ICU to diagnose a fault on an incubator.
