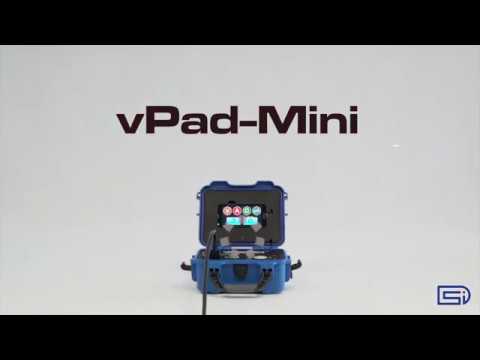

vPad-Mini vp-mini
vPad-Mini enables Clinical and Field Service Engineers to quickly perform basic electrical safety checks on all types of medical equipment, ranging from beds to patient monitors with applied parts.
vPad-Mini

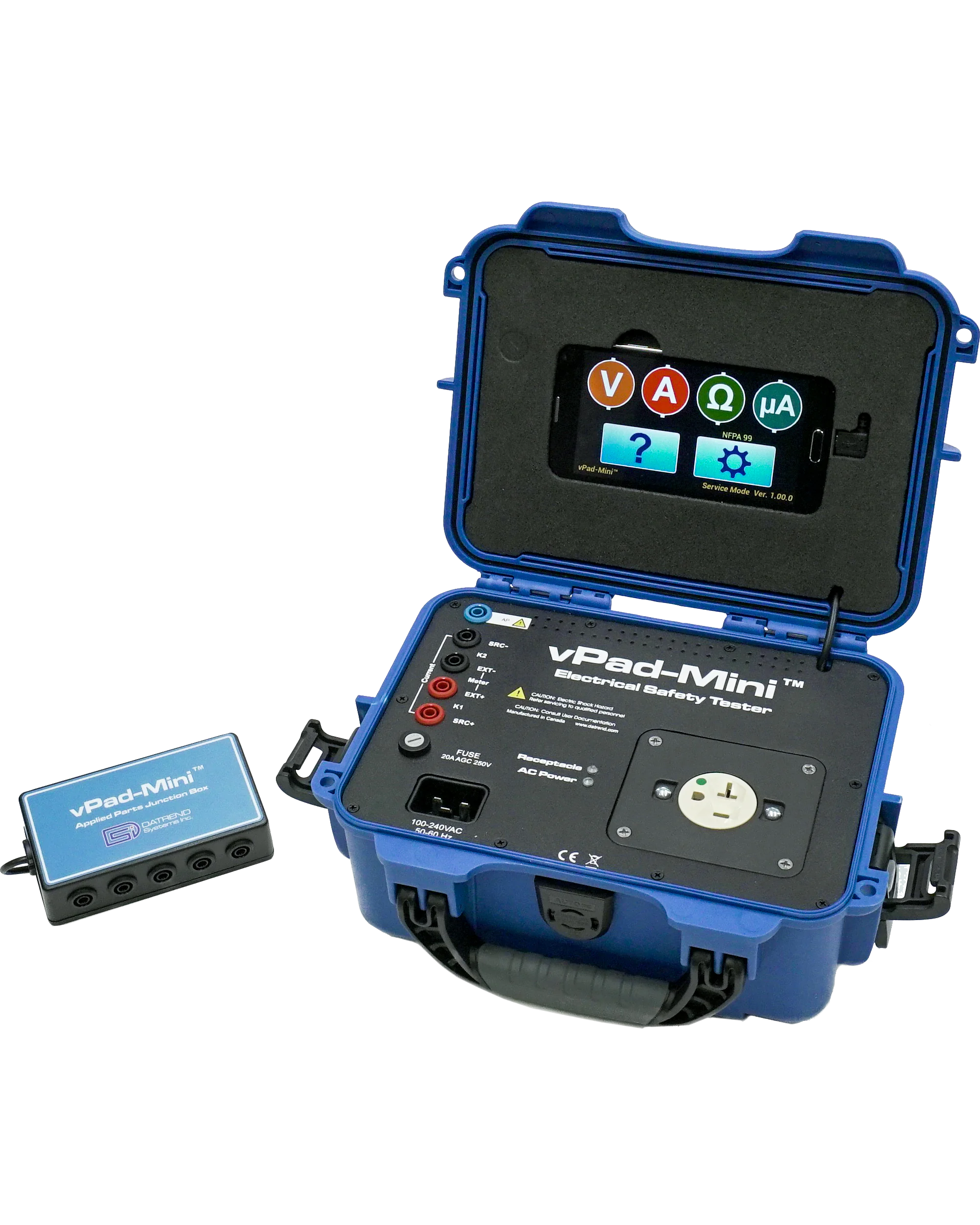

vPad-Mini is a compact electrical safety analyzer that is packed with features.
Although simple and easy to use, vPad-Mini is nonetheless capable of performing many of the tests specified in electrical safety standards such as AAMI-ES1, NFPA 99, IEC 60601, IEC 62353 and IEC 61010.
Providing a watertight rugged plastic case and a user interface based on a 5\" Android smartphone, vPad-Mini is based on the existing vPad Rugged product. Although significantly smaller than vPad Rugged, vPad-Mini provides the same 20 ampere rating and measurement accuracy.
- Tests to NFPA-99, IEC 62353, IEC 60601, IEC 61010 & AAMI/ANSI ES-1 standards
- High-resolution touchscreen LCD
- Applied Parts Testing including Mains On Applied Part
- Optional Record Management and Printing
- Available Automatic Test Sequences
- Small footprint: 21 x 15 x 9.4 cm (8.4 x 6 x 3.7 in)
Automation App Packages
vPad-Mini Test Automation
Test Automation and Record Management Package
vPad-Mini Test Record Management
vPad-Reports
Barcode Scanner
7600-055
Cable
7200-234

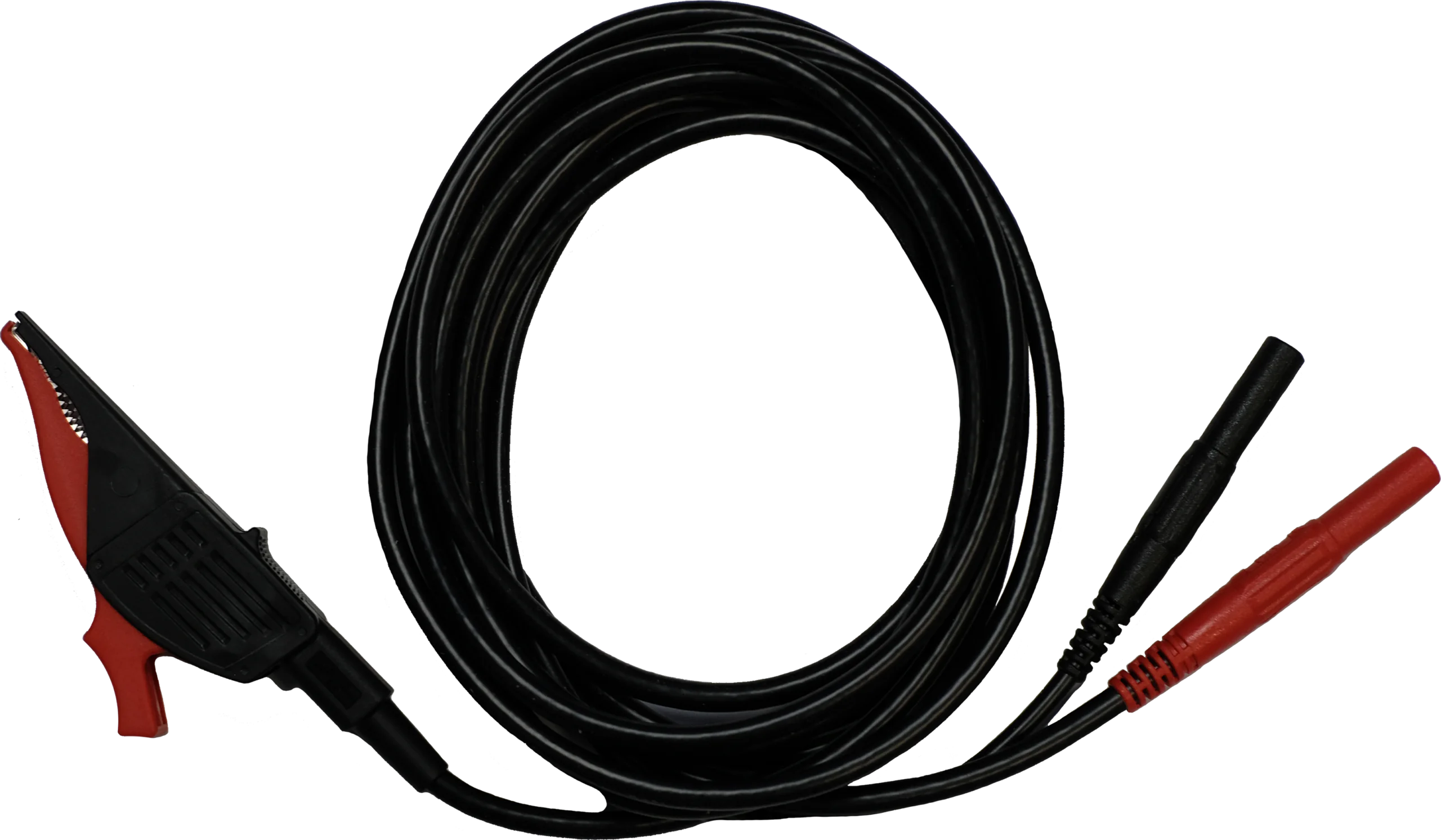

3140-425
3140-475
3140-479
Interface Module

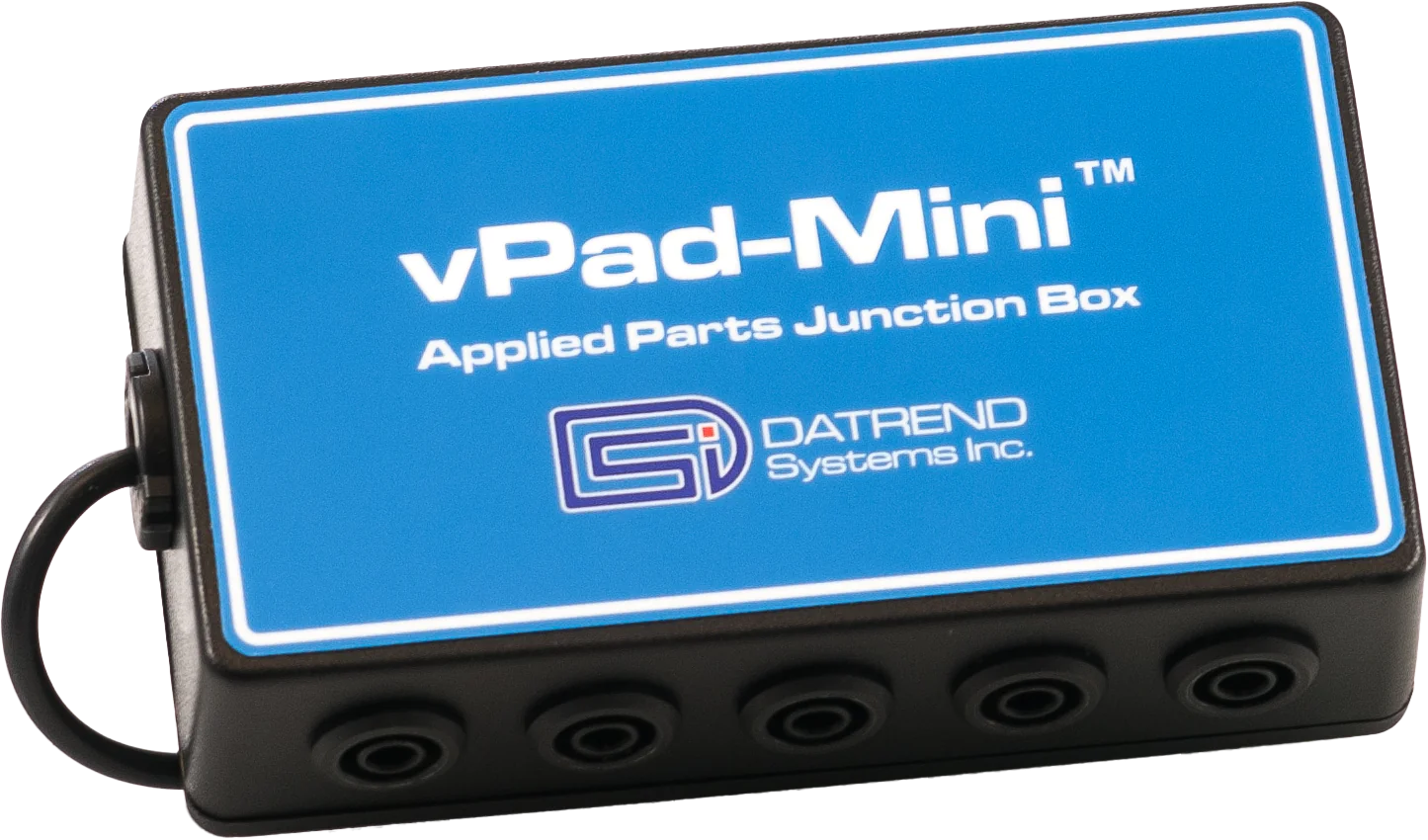

7400-094
vPad-Mini Applied Part Junction Box
Power Cord

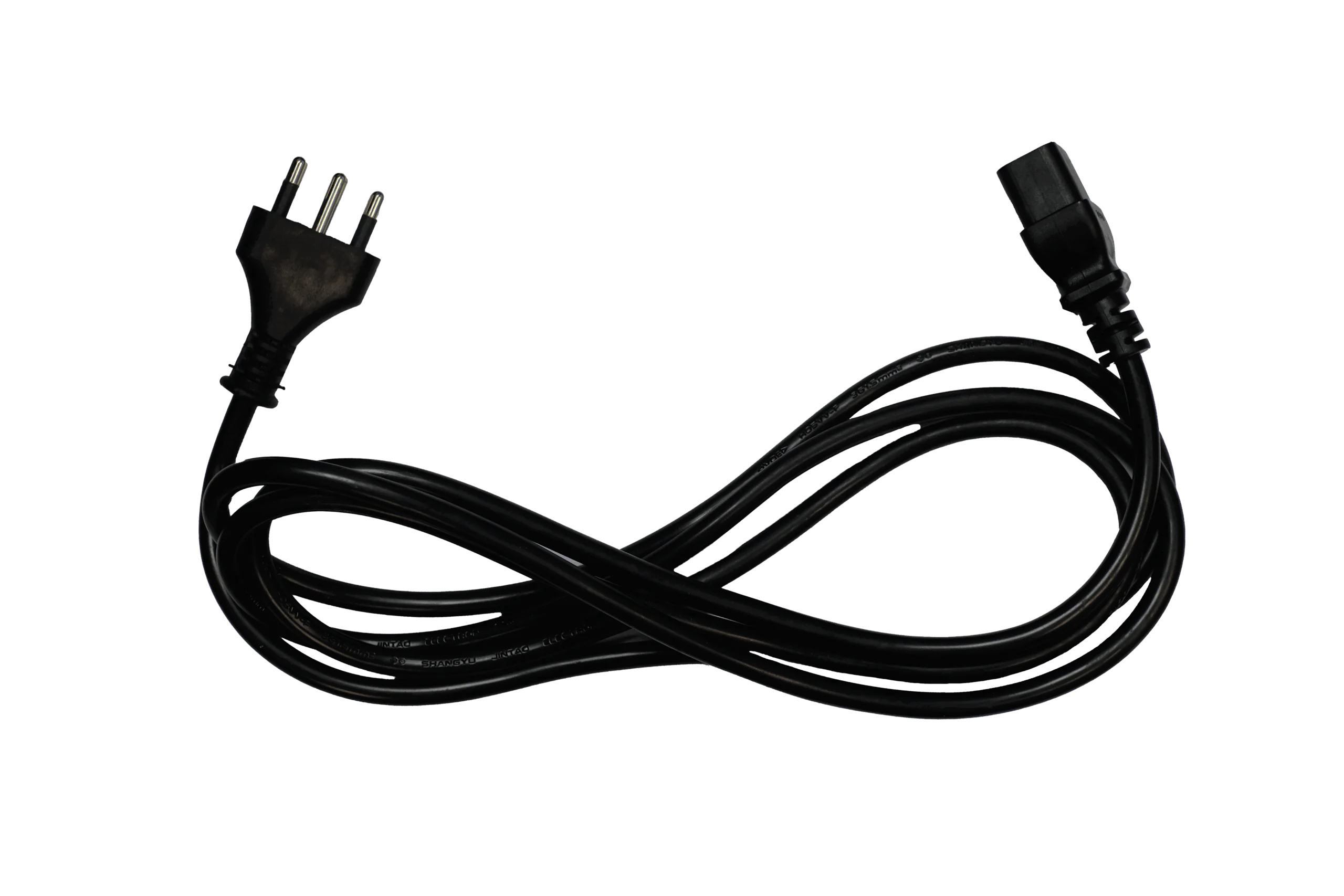

3000-017
3000-010
3000-015
3000-009
3000-011
3000-012
3000-016
3000-018
3000-019
Printer
7050-058
